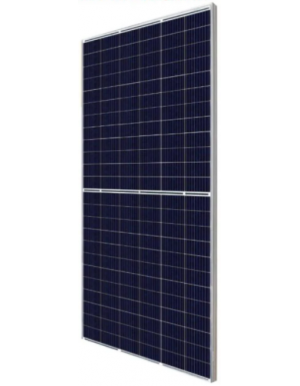

Canadian Solar HiKu5 / HiKu6 Series – CS3W-440MS Monocrystalline Solar Panel
The Canadian Solar HiKu5 / HiKu6 CS3W-440MS is a high-efficiency monocrystalline solar panel designed to meet the demands of commercial, industrial, and utility-scale installations. This panel features PERC (Passivated Emitter and Rear Cell) technology, multi-busbar (MBB) design, and half-cut cell technology for superior energy yields, exceptional reliability, and long-term performance. With its 440W maximum power output and robust construction, it is a versatile and dependable solution for high-capacity solar projects.
Description
Key Features
- High Power Output – 440W
- Delivers up to 440W maximum power output, reducing the number of panels required for large-scale systems.
- High Module Efficiency – 20.2%
- Achieves up to 20.2% module efficiency, maximizing energy production per square meter.
- PERC Technology
- Enhances light absorption and increases energy conversion efficiency, ensuring better performance in both high and low-light conditions.
- Multi-Busbar (MBB) Technology
- Reduces resistance losses and improves current collection, boosting overall module efficiency and energy output.
- Half-Cut Cell Design
- Minimizes power loss due to shading and reduces internal resistance, improving module reliability.
- Durable and Robust Design
- Withstands extreme weather conditions, including wind loads up to 2400 Pa and snow loads up to 5400 Pa.
- Low Degradation Rate
- Features an annual degradation rate of 0.55%, ensuring stable performance and 84.8% output after 25 years.
- Optimized for Large Systems
- Compatible with 1500V DC systems, reducing Balance of System (BOS) costs and simplifying installation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CS3W-440MS |
| Type | Monocrystalline PERC |
| Maximum Power Output (Pmax) | 440W |
| Module Efficiency | 20.2% |
| Open-Circuit Voltage (Voc) | 49.8V |
| Short-Circuit Current (Isc) | 11.09A |
| Voltage at Maximum Power (Vmp) | 41.6V |
| Current at Maximum Power (Imp) | 10.57A |
| Cell Configuration | 144 Half-Cut Cells (6 x 24) |
| Glass | 3.2mm Tempered Anti-Reflective Glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Connector Type | MC4 Compatible |
| Maximum System Voltage | 1500V DC |
| Temperature Coefficient (Pmax) | -0.35% / °C |
| Operating Temperature Range | -40°C to +85°C |
| Weight | 24.9 kg |
| Dimensions (L x W x D) | 2108 x 1048 x 35 mm |
Advanced Features
- High Energy Density
- Compact design with high efficiency ensures maximum energy production in limited spaces.
- Enhanced Shading Tolerance
- Half-cut cell technology minimizes energy losses in partially shaded conditions.
- Long-Term Performance
- Guarantees consistent power generation with low degradation over a 25+ year lifespan.
- Durable Construction
- Built to resist mechanical stress, extreme temperatures, and environmental factors like salt mist and humidity.
- High Voltage Compatibility
- Supports 1500V DC systems, reducing overall system costs for utility-scale installations.
Benefits of Canadian Solar HiKu5 / HiKu6 CS3W-440MS
- Higher Energy Yields: Provides 440W power output with 20.2% efficiency, maximizing ROI.
- Improved Performance: MBB and PERC technologies ensure optimal performance in various conditions.
- Durable and Reliable: Designed for long-term performance in diverse environmental conditions.
- Low Annual Degradation: Guarantees reliable energy production over decades with minimal power loss.
- Cost-Effective: Reduces installation and BOS costs with high voltage and high power output.
Ideal Applications
- Commercial Rooftops: Efficiently generates power for businesses and office buildings.
- Industrial Use: Supports energy-intensive operations in warehouses and factories.
- Utility-Scale Solar Farms: Optimized for large ground-mounted solar installations requiring high power density.
- Hybrid Solar Systems: Suitable for on-grid, off-grid, and hybrid setups.
Why Choose Canadian Solar HiKu5 / HiKu6 CS3W-440MS?
- Trusted Global Brand: Canadian Solar is a leader in innovative and reliable solar technology.
- Superior Efficiency: Achieves 20.2% efficiency with advanced PERC and MBB technologies.
- Built to Last: Withstands harsh weather conditions with robust construction.
- Low Degradation: Stable performance with minimal power loss over time.
- Optimized for Scale: High power output and 1500V compatibility make it ideal for large systems.
Conclusion
The Canadian Solar HiKu5 / HiKu6 CS3W-440MS solar panel is a cutting-edge solution for large-scale commercial, industrial, and utility-scale installations. With its 440W power output, 20.2% efficiency, and advanced features like PERC and MBB technology, it delivers high energy yields and long-term reliability at a competitive cost.
Choose the Canadian Solar HiKu5 / HiKu6 Series for efficient, durable, and cost-effective solar energy solutions!
