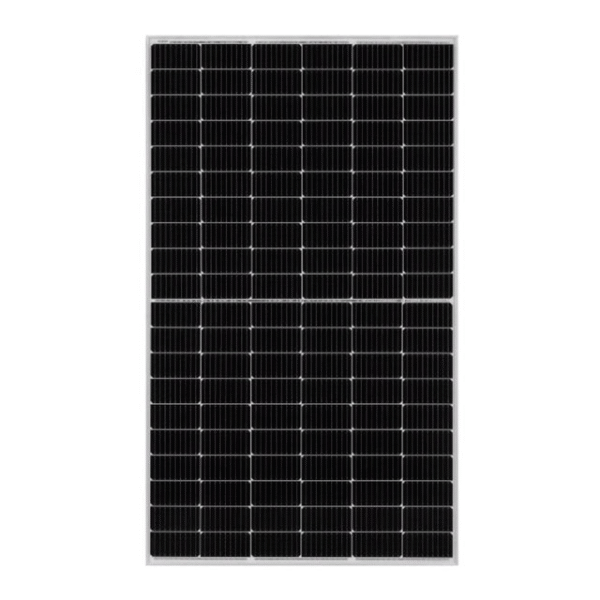

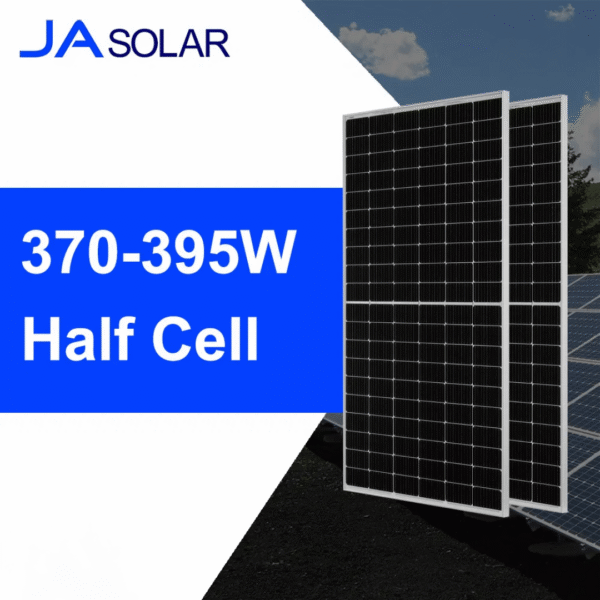

JA Solar JAM60S20-370/MR (MBB) – High-Efficiency Monocrystalline Solar Module

Description

Key Features

1. High Power Output – 370W:
   • Provides a maximum power output of 370W, delivering higher energy yields for various solar applications.
2. High Module Efficiency – 20.3%:
   • Achieves a module efficiency of 20.3%, maximizing energy generation in limited spaces.
3. Multi-Busbar (MBB) Technology:
   • Reduces resistive losses and improves light capture for enhanced energy output.
   • Minimizes cell stress, reducing the risk of micro-cracks and ensuring long-term reliability.
4. Monocrystalline PERC Technology:
   • Passivated Emitter and Rear Cell (PERC) design enhances light absorption and energy conversion efficiency.
5. Half-Cut Cell Technology:
   • Reduces internal resistance losses and improves shading tolerance.
   • Minimizes the impact of hotspots and increases overall module durability.
6. Enhanced Durability:
   • Built with 3.2mm tempered anti-reflective glass and an anodized aluminum alloy frame for strength and durability.
   • Withstands heavy wind loads (2400 Pa) and snow loads (5400 Pa).
7. Low Degradation Rate:
   • Annual degradation of 0.55%, ensuring stable power output for 25+ years.
8. Excellent Performance in Low-Light Conditions:
   • Delivers reliable energy generation during dawn, dusk, and cloudy weather.

---

Technical Specifications

Specification	Details
Model	JAM60S20-370/MR
Type	Monocrystalline PERC
Maximum Power Output (Pmax)	370W
Module Efficiency	20.3%
Open-Circuit Voltage (Voc)	40.8V
Short-Circuit Current (Isc)	11.48A
Voltage at Maximum Power (Vmp)	34.5V
Current at Maximum Power (Imp)	10.72A
Cell Configuration	120 Half-Cut Cells (6 x 20)
Glass	3.2mm Tempered Anti-Reflective Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Rated
Connector Type	MC4 Compatible
Maximum System Voltage	1000V DC
Temperature Coefficient (Pmax)	-0.35% / °C
Operating Temperature Range	-40°C to +85°C
Weight	19.5 kg
Dimensions (L x W x D)	1776 x 1052 x 35 mm

---

Advanced Features

1. Multi-Busbar (MBB) Technology:
   • Enhances light capture and increases current flow for better energy generation.
   • Minimizes the risk of micro-cracks, improving the module’s durability and reliability.
2. Half-Cut Cell Design:
   • Reduces power loss caused by resistance, increasing overall module efficiency.
   • Enhances performance in partially shaded conditions.
3. PERC Technology:
   • Improves light absorption by reflecting unabsorbed light back into the cell for additional energy conversion.
4. Enhanced Weather Resistance:
   • Withstands extreme environmental conditions, including wind, snow, and humidity, ensuring stable and long-lasting performance.
5. Reliable Long-Term Power Output:
   • Delivers stable performance with minimal annual power degradation, ensuring 25+ years of reliable energy generation.

---

Benefits of JA Solar JAM60S20-370/MR

• High Efficiency: Industry-leading 20.3% module efficiency for maximum energy yield.
• Compact and Powerful: Optimized design provides higher energy output in smaller spaces.
• Improved Shading Performance: Half-cut cells and MBB technology reduce the impact of shading and hotspots.
• Cost-Effective: High performance at a competitive price point.
• Durability and Reliability: Resistant to harsh weather conditions with robust construction.
• Low Degradation: Reliable energy generation over 25+ years with minimal power loss.

---

Ideal Applications

• Residential Solar Systems: Perfect for homeowners looking to maximize rooftop energy production.
• Commercial Installations: Suitable for small and medium-sized businesses requiring reliable energy output.
• Industrial Applications: Reliable for factories and warehouses with medium energy needs.
• Ground-Mounted Projects: Efficient and cost-effective for small to medium-scale solar farms.

---

Why Choose the JA Solar JAM60S20-370/MR?

• High Performance: Exceptional efficiency of 20.3% with advanced PERC and MBB technology.
• Robust Durability: Built to withstand extreme weather conditions, ensuring long-term reliability.
• Shading Tolerance: Half-cut cells improve performance under partial shading.
• Trusted Brand: JA Solar is a global leader in solar innovation and quality.
• Cost-Effective Solution: Delivers high power output at an affordable price point.

---

Conclusion

The JA Solar JAM60S20-370/MR is a top-tier solar module that combines high efficiency, advanced multi-busbar and PERC technology, and outstanding durability to deliver maximum energy yields for residential, commercial, and industrial applications. With its 370W output and 20.3% efficiency, it provides reliable and cost-effective performance, ensuring long-term energy savings.

Choose the JA Solar JAM60S20-370/MR for a sustainable, powerful, and dependable solar energy solution!
