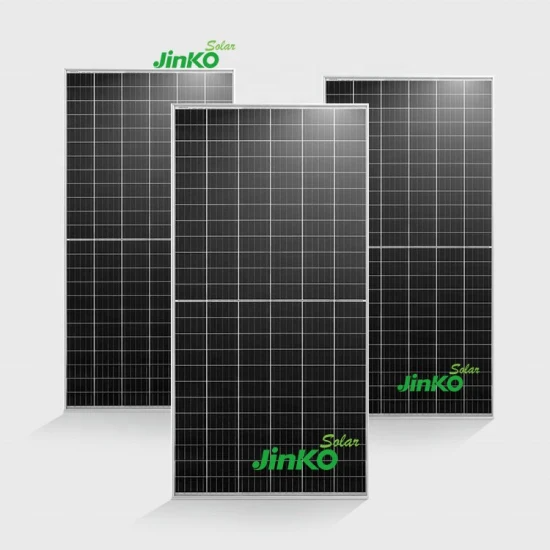

Jinko Solar Tiger Series – JKM390N-6TL3-V Monocrystalline Solar Panel

Description

Key Features

1. High Power Output – 390W
   • Maximum output of 390W, optimizing energy production for space-constrained rooftops or ground installations.
2. High Module Efficiency – 21.4%
   • Industry-leading module efficiency of 21.4% ensures greater energy yield per square meter.
3. N-Type Monocrystalline Technology
   • Provides superior performance, lower degradation, and enhanced power generation compared to traditional P-Type panels.
   • N-Type technology reduces Light-Induced Degradation (LID) and Potential-Induced Degradation (PID).

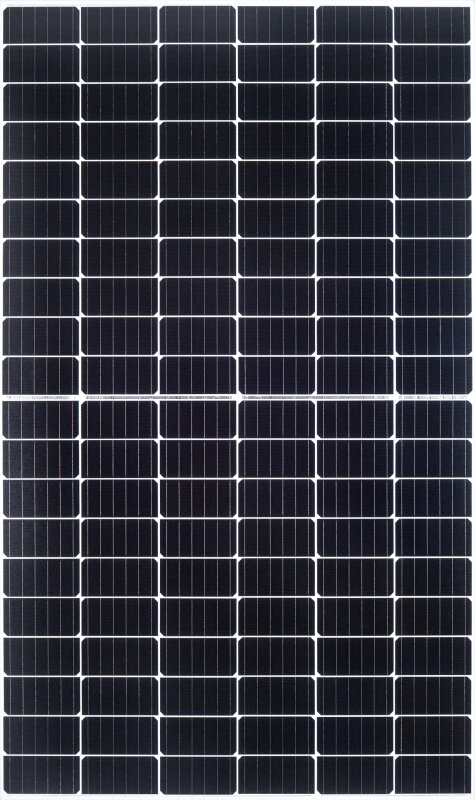

4. Half-Cut Cell Technology
   • Reduces internal resistance losses, improving shading tolerance and overall efficiency.
   • Enhances panel durability and reduces the risk of hot spots.

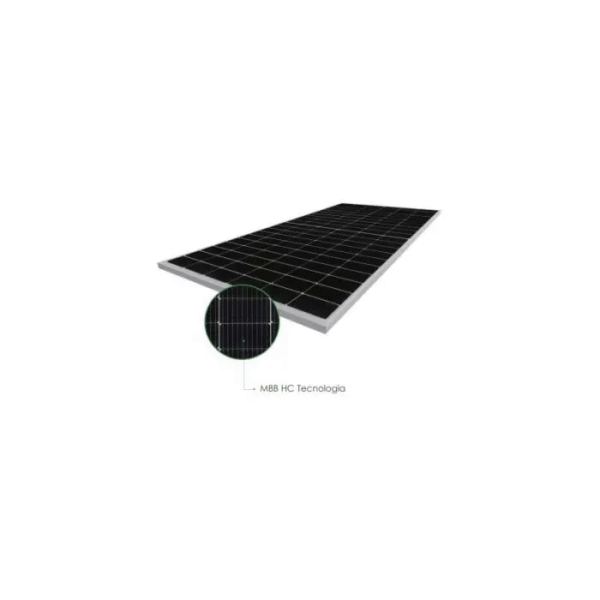

5. Multi-Busbar (MBB) Technology
   • Improves current collection efficiency and minimizes power loss due to resistance.
   • Increases light trapping, boosting overall energy production.
6. Low Degradation
   • Ensures minimal power loss with <0.4% annual degradation, providing stable performance over 30 years.
7. Robust and Durable Design
   • Withstands wind loads up to 2400 Pa and snow loads up to 5400 Pa.
   • Resistant to extreme weather conditions, including high humidity and coastal salt mist.

---

Technical Specifications

Specification	Details
Model	JKM390N-6TL3-V
Cell Type	N-Type Monocrystalline PERC
Maximum Power Output (Pmax)	390W
Module Efficiency	21.4%
Open-Circuit Voltage (Voc)	41.9V
Short-Circuit Current (Isc)	11.73A
Voltage at Maximum Power (Vmp)	35.2V
Current at Maximum Power (Imp)	11.08A
Cell Configuration	120 Half-Cut Cells (6 x 20)
Glass	3.2mm Tempered Anti-Reflective Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Rated
Connector Type	MC4 Compatible
Maximum System Voltage	1500V DC
Temperature Coefficient (Pmax)	-0.34% / °C
Operating Temperature	-40°C to +85°C
Weight	19.5 kg
Dimensions (L x W x D)	1692 x 1029 x 35 mm

---

Advanced Features

1. N-Type Technology Advantage
   • Reduces Light-Induced Degradation (LID), ensuring higher energy production over the panel’s lifespan.
   • Improved temperature performance with a lower temperature coefficient.
2. Enhanced Shading Tolerance
   • Half-cut cells ensure higher energy production even when parts of the panel are shaded.
3. Multi-Busbar (MBB) Technology
   • Reduces resistance losses and improves light capture for increased module efficiency.
4. Long Lifespan and Reliability
   • Provides 30 years of performance warranty, ensuring stable and efficient energy production.
5. Sustainable and Cost-Effective
   • Delivers high power output in a compact form, reducing Balance of System (BOS) costs.

---

Benefits of Jinko Solar Tiger JKM390N-6TL3-V

• High Efficiency: Achieves 21.4% efficiency for maximum energy output in limited spaces.
• Advanced N-Type Technology: Reduces LID and PID, ensuring long-term energy production.
• Improved Shading Performance: Half-cut cells maintain energy output in partially shaded conditions.
• Durable Construction: Built to withstand harsh environmental conditions like wind, snow, and humidity.
• Low Degradation: Guarantees <0.4% annual degradation, offering reliable energy for over 30 years.
• Versatile Applications: Suitable for residential, commercial, and industrial solar installations.

---

Ideal Applications

• Residential Rooftops: Compact and efficient for homes with limited space.
• Commercial Installations: Perfect for small to medium-scale businesses seeking reliable energy.
• Industrial Use: Supports energy-intensive operations in warehouses and factories.
• Ground-Mounted Projects: Efficient for distributed solar farms and microgrid systems.

---

Why Choose Jinko Solar Tiger JKM390N-6TL3-V?

• World-Class Technology: N-Type cells, MBB design, and half-cut technology ensure exceptional performance.
• High Efficiency and Reliability: Achieves 21.4% efficiency with minimal annual degradation.
• Long-Term Stability: Backed by a 30-year linear power warranty for peace of mind.
• Cost-Effective Solution: Reduces installation and BOS costs with high energy yields.
• Global Leader: Jinko Solar is a top-tier brand trusted worldwide for quality and innovation.

---

Conclusion

The Jinko Solar Tiger JKM390N-6TL3-V is an advanced, high-efficiency solar module optimized for maximum energy production and long-term reliability. With its 21.4% efficiency, N-Type technology, and half-cut cell design, it offers superior performance for residential, commercial, and industrial applications.

Invest in the Jinko Solar Tiger Series for a future-ready, reliable, and cost-effective solar energy solution!
