Jinko Tiger Pro 550W Mono-Facial Solar Panel – High-Performance, Durable Energy Solution

Description

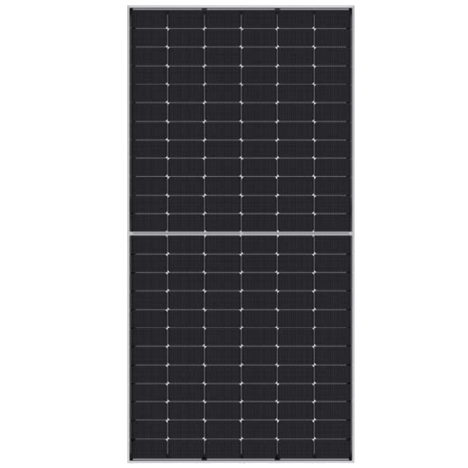

Jinko Tiger Pro 550W

Key Features

1. High Power Output:
   • Generates up to 550W under Standard Test Conditions (STC).
   • NOCT Power Output: 409W ensures consistent energy generation under real-world conditions.

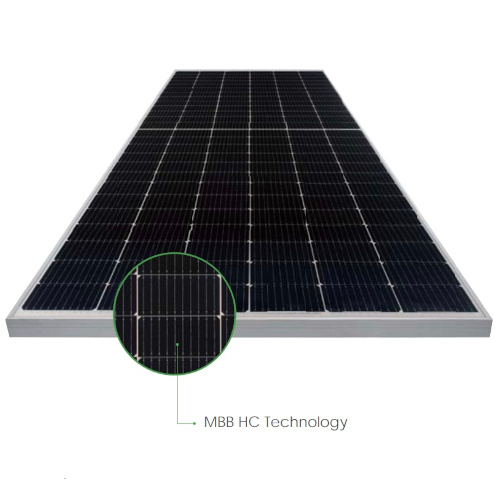

2. Multi-Busbar (MBB) Technology:
   • Reduces internal resistance losses.
   • Improves light capture for better energy conversion.
3. Half-Cut Cell Design:
   • Enhances shading tolerance and minimizes energy loss due to micro-cracks.
4. Long-Term Reliability:
   • Annual Energy Degradation: Only 0.55% per year.
   • Backed by a 25-year power warranty for consistent output over decades.
5. Durability in Harsh Conditions:
   • Resistant to high salt fog and ammonia environments.
   • Withstands heavy wind loads (2400 Pascal) and snow loads (5400 Pascal).
6. Anti-Reflection Glass:
   • 3.2mm tempered glass with an anti-reflective coating improves light transmission and reduces surface dust accumulation.

---

Technical Specifications

Parameter	STC	NOCT
Maximum Power Output (Pmax)	550W	409W
Maximum Power Voltage (Vmp)	40.90V	38.42V
Maximum Power Current (Imp)	13.45A	10.65A
Open-Circuit Voltage (Voc)	49.62V	46.84V
Short-Circuit Current (Isc)	14.03A	11.33A
Module Efficiency	21.33%	–
Power Tolerance	0 ~ +3%	–

---

Mechanical Data

Component	Details
Cell Type	P-Type Mono-Crystalline
Number of Cells	144 (6 x 24)
Front Glass	3.2mm Anti-Reflective Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Rated
Dimensions	2274 x 1134 x 35 mm
Weight	28.9 kg
Mechanical Load	Wind: 2400 Pa / Snow: 5400 Pa

---

Environmental and Safety Data

Parameter	Details
Operating Temperature	-40℃ to +85℃
Maximum System Voltage	1000/1500V DC (IEC)
Maximum Series Fuse Rating	25A
Temperature Coefficient (Pmax)	-0.35% / °C

---

Key Benefits

1. Outstanding Efficiency:
   Achieves an impressive 21.33% efficiency, ensuring greater energy yield per square meter.
2. Improved Shading Tolerance:
   Half-cut cell design ensures higher energy output even in shaded conditions.
3. Long-Term Energy Reliability:
   With an annual degradation rate of 0.55%, the panel guarantees over 25 years of consistent energy generation.
4. Resilience in Extreme Environments:
   • Anti-salt fog and ammonia resistance ensures suitability for coastal and agricultural installations.
   • High mechanical load capacity for heavy snow and wind conditions.
5. Low Maintenance:
   The anti-reflection coating improves light absorption while reducing dust buildup, minimizing cleaning requirements.

---

Ideal Applications

• Residential Solar Systems: Maximize rooftop efficiency with high power output.
• Commercial Installations: Reliable and scalable for large businesses and office buildings.
• Utility-Scale Projects: Perfect for solar farms requiring robust and high-efficiency panels.
• Industrial Facilities: Supports high energy demands in warehouses, factories, and manufacturing units.

---

Why Choose Jinko Tiger Pro 550W?

• High Module Efficiency: 21.33% for optimal power output.
• Advanced MBB and Half-Cut Technology: Reduced energy loss and enhanced reliability.
• 25-Year Power Warranty: Long-term performance assurance.
• Durable and Weatherproof: Built to perform in extreme conditions.
• Environmental Sustainability: Helps reduce carbon footprint while offering significant savings.

---

The Jinko Tiger Pro 550W Mono-Facial Solar Panel is the ultimate solution for maximizing energy production while ensuring long-term durability and reliability. Designed with cutting-edge technology, this panel guarantees exceptional performance in both residential and commercial applications. Invest in Jinko Tiger Pro and power your energy needs sustainably and efficiently!
