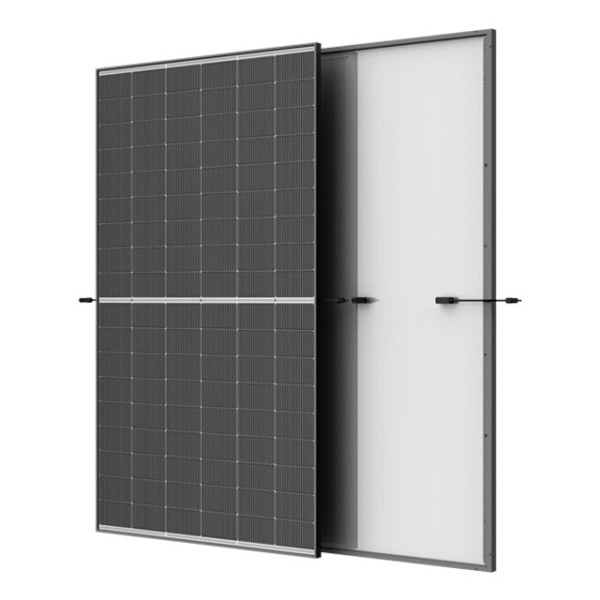

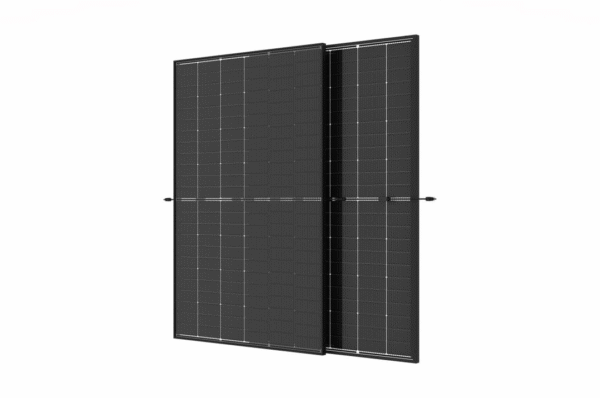

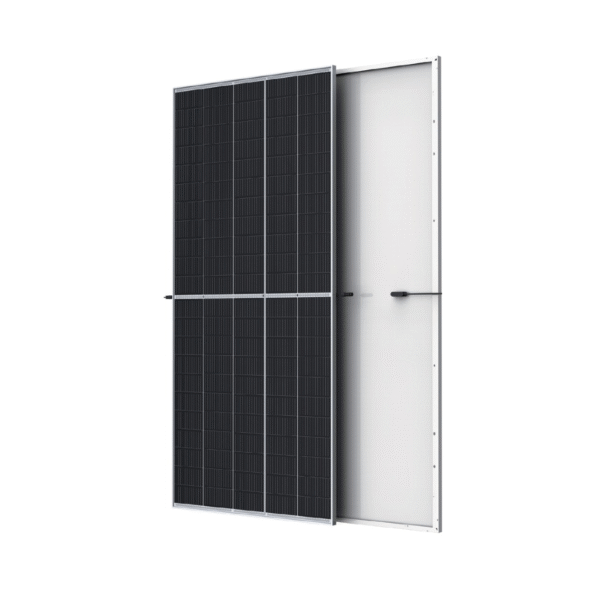

Trina Solar Vertex S Series – TSM-420-DE09.08 Monocrystalline Solar Panel

Description

Key Features

1. High Power Output – 420W:
   • Provides up to 420W of power, ensuring higher energy generation and maximum efficiency.
2. High Module Efficiency – 21.8%:
   • Industry-leading efficiency of 21.8% ensures superior energy production per square meter.
3. Compact and Lightweight Design:
   • Optimized size and weight for residential and commercial rooftops, enabling easy installation and handling.
4. Multi-Busbar (MBB) Technology:
   • Enhances light capture and current collection efficiency.
   • Reduces cell stress, resulting in lower power loss and higher reliability.
5. Half-Cut Cell Technology:
   • Minimizes resistive losses and enhances shading tolerance.
   • Reduces hot spots, improving durability and overall performance.
6. Robust and Durable Build:
   • Designed to withstand heavy snow loads (up to 5400 Pa) and wind loads (up to 4000 Pa).
   • High reliability in extreme weather conditions.
7. Low Degradation Rate:
   • Ensures 0.55% annual power degradation for stable, long-term performance.
8. Versatile Applications:
   • Compatible with existing systems and inverters, ideal for residential, commercial, and industrial applications.

---

Technical Specifications

Specification	Details
Model	TSM-420-DE09.08
Type	Monocrystalline PERC
Maximum Power Output (Pmax)	420W
Module Efficiency	21.8%
Open-Circuit Voltage (Voc)	38.6V
Short-Circuit Current (Isc)	13.88A
Voltage at Maximum Power (Vmp)	32.0V
Current at Maximum Power (Imp)	13.13A
Cell Configuration	120 Half-Cut Cells (6 x 20)
Glass	3.2mm Tempered Anti-Reflective Glass
Frame	Anodized Aluminum Alloy
Junction Box	IP68 Rated
Connector Type	MC4 Compatible
Operating Temperature	-40°C to +85°C
Temperature Coefficient (Pmax)	-0.34% / °C
Maximum System Voltage	1500V DC
Weight	21 kg
Dimensions (L x W x D)	1762 x 1134 x 30 mm

---

Advanced Features

1. High Energy Density:
   • Optimized design provides more power output in compact spaces, increasing energy yield.
2. Enhanced Shading Tolerance:
   • Half-cut cells ensure improved energy production even in partially shaded conditions.
3. Reliable Multi-Busbar (MBB) Technology:
   • Reduces internal resistance, enhancing current flow and overall module efficiency.
4. Long-Term Durability:
   • Tested for resistance to mechanical loads, corrosion, and extreme environmental stress.
5. Low Degradation:
   • Minimal annual degradation (0.55%) guarantees 85% power output after 25 years.

---

Benefits of the Trina Solar Vertex S TSM-420-DE09.08

• High Energy Efficiency: Achieves 21.8% module efficiency for maximum power generation.
• Compact and Versatile: Perfect for residential rooftops, commercial installations, and industrial applications.
• Superior Durability: Built to withstand harsh weather conditions, including wind, snow, and high humidity.
• Enhanced Shading Performance: Half-cut cells ensure higher output even in suboptimal conditions.
• Long-Term Stability: Guarantees reliable performance with minimal power loss over time.

---

Ideal Applications

• Residential Rooftops: Compact size makes it ideal for homes with limited roof space.
• Commercial Projects: Optimized for small to medium-scale commercial buildings.
• Industrial Applications: Provides consistent, reliable energy for warehouses, factories, and industrial systems.
• Solar Farms: Suitable for ground-mounted and utility-scale installations requiring high efficiency.

---

Why Choose Trina Solar Vertex S TSM-420-DE09.08?

• Trusted Global Brand: Trina Solar is a leader in innovative and reliable solar energy solutions.
• Industry-Leading Efficiency: Delivers superior performance with 21.8% module efficiency.
• Advanced Technology: Combines MBB and half-cut cells for better shading tolerance and reduced losses.
• Compact and Lightweight: Designed for easy installation in limited spaces.
• Long-Term Reliability: Backed by excellent durability and performance guarantees.

---

Conclusion

The Trina Solar Vertex S TSM-420-DE09.08 solar panel combines cutting-edge PERC technology, multi-busbar design, and half-cut cells to deliver high energy efficiency and outstanding durability. With its compact form factor, it is perfect for maximizing energy production on residential rooftops, commercial installations, and industrial setups.

Invest in the Trina Solar Vertex S Series for reliable, efficient, and sustainable solar energy generation!
