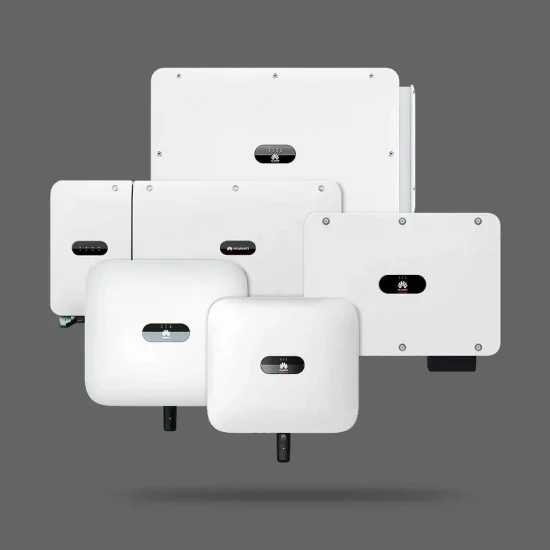

Huawei FusionSolar SUN2000-30KTL-M3 – Commercial-Scale Grid-Tied, Three-Phase Inverter

Description

Huawei FusionSolar

Key Features

1. High Efficiency – Up to 98.7%
   • Industry-leading maximum efficiency of 98.7% ensures minimal energy loss, maximizing solar energy production.
2. Smart PV Optimization
   • Supports Huawei Smart PV Optimizers for each panel, reducing the impact of shading, soiling, or module mismatch.
3. AI-Powered Active Safety
   • Built-in arc fault circuit interruption (AFCI) technology ensures enhanced safety by detecting and mitigating arc faults.
4. 12 MPPTs for Maximum Flexibility
   • Features 12 Maximum Power Point Trackers (MPPTs) to optimize energy harvesting from diverse panel orientations or conditions.
5. Integrated PID Recovery
   • Mitigates potential-induced degradation (PID) to maintain panel performance and ensure long-term energy production.
6. Three-Phase Power Output
   • Designed for commercial systems, providing reliable, balanced three-phase power.
7. Smart Monitoring & Connectivity
   • Comes with built-in Wi-Fi, Ethernet, and RS485 for remote monitoring via Huawei’s FusionSolar App or cloud platform.
8. IP66 Weatherproof Design
   • Highly durable and suitable for outdoor installations, providing resistance to water, dust, and extreme temperatures.
9. Natural Cooling
   • Fanless design ensures quiet operation, low maintenance, and long-lasting performance.

---

Technical Specifications

Parameter	Details
Model	SUN2000-30KTL-M3
Rated AC Output Power	30 kW
Maximum Efficiency	98.7%
European Efficiency	98.4%
MPPT Input Voltage Range	200 – 1000 V
Max. DC Input Voltage	1100 V
Number of MPPTs	12
Max. Input Current per MPPT	13 A
AC Nominal Voltage	400 V (Three-Phase)
AC Grid Frequency	50 Hz / 60 Hz
AC Maximum Output Current	48 A
Communication Interface	Wi-Fi / Ethernet / RS485
Cooling Method	Natural Convection
Protection Rating	IP66
Noise Level	< 29 dB
Operating Temperature Range	-25°C to +60°C
Weight	43 kg
Dimensions (H x W x D)	640 x 530 x 270 mm

---

Advanced Features

1. 12 MPPTs for Flexibility
   • Allows for diverse string configurations and optimizes energy production from installations with varying panel orientations and shading conditions.
2. PID Recovery for Long-Term Panel Health
   • Integrated PID recovery ensures that potential-induced degradation does not negatively impact the system’s performance.
3. AI-Driven Safety
   • Arc fault detection and prevention enhance safety and system reliability.
4. Robust and Durable
   • IP66-rated housing ensures resistance to environmental stresses, such as dust, water, and extreme weather conditions.
5. Future-Ready Connectivity
   • Seamless integration with Huawei’s cloud-based FusionSolar Monitoring System for real-time performance tracking and analytics.

---

Benefits of Huawei FusionSolar SUN2000-30KTL-M3

• High Energy Efficiency: Up to 98.7% efficiency ensures maximum energy generation with minimal losses.
• Scalable Design: Supports large-scale installations with 12 MPPTs for flexibility in panel configuration.
• Enhanced Safety: Advanced AFCI ensures proactive detection and mitigation of arc faults for reliable operation.
• Low Maintenance: Fanless natural cooling design reduces maintenance needs and ensures quiet operation.
• Durable Construction: IP66-rated design withstands harsh weather, ensuring long-lasting performance.

---

Ideal Applications

• Commercial Rooftops: Perfect for office buildings, warehouses, and commercial complexes requiring high energy output.
• Industrial Installations: Reliable and efficient solution for factories and large facilities with significant energy demands.
• Utility-Scale Projects: Suitable for distributed generation in large solar farms.
• Hybrid Energy Systems: Can be integrated into hybrid solar setups with battery storage.

---

Why Choose Huawei FusionSolar SUN2000-30KTL-M3?

• Trusted Brand: Huawei is a global leader in smart energy technology, ensuring quality and reliability.
• Superior Efficiency: Industry-leading efficiency of 98.7% maximizes ROI.
• Advanced Technology: Includes 12 MPPTs, PID recovery, and Smart PV Optimizer compatibility for optimal energy production.
• Durable and Reliable: IP66-rated construction ensures long-lasting performance in diverse environments.
• Comprehensive Monitoring: Real-time tracking through the FusionSolar platform enhances system management and diagnostics.

---

Conclusion

The Huawei FusionSolar SUN2000-30KTL-M3 is a high-performance, reliable inverter optimized for commercial and industrial solar installations. With its 30kW capacity, 12 MPPTs, and advanced safety features, it provides flexible, efficient, and robust energy solutions for large-scale projects. Its IP66-rated construction and smart connectivity make it a future-proof choice for maximizing solar energy generation.

Choose Huawei FusionSolar for intelligent, efficient, and dependable solar energy management!
