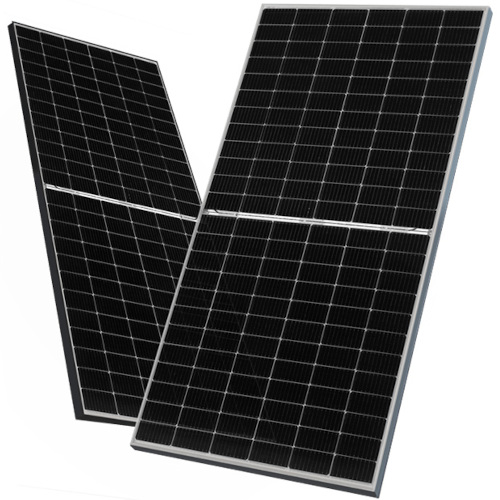

Jinko Solar Tiger Neo N-Type 580W High-Performance Solar Panel

Description

Key Features

• High Power Output:
  Generates an impressive 580W of power, making it ideal for large-scale energy systems requiring maximum performance.
• N-Type Technology with HOT 2.0:
  Ensures better performance, higher reliability, and superior energy yield with reduced degradation.
• SMBB (Small Multi-Busbar) Technology:
  Enhances light trapping and collection efficiency, boosting power output and module reliability.
• Anti-Reflection Coating:
  The 2.0mm front glass with anti-reflection coating increases light absorption for higher energy conversion.
• Durable Dual-Glass Build:
  Features 2.0mm heat-strengthened back glass for improved durability and enhanced module protection.
• PID Resistance:
  Offers excellent resistance to potential-induced degradation (PID), ensuring long-term performance in harsh environments.

---

Technical Specifications

Specifications	Details
Cell Type	N-Type Mono-Crystalline
Number of Cells	144 (2 x 72)
Maximum Power Output (Pmax)	580W
Power Tolerance	0 ~ +3%
Front Glass	2.0mm Anti-Reflection Coated
Back Glass	2.0mm Heat-Strengthened Glass
Dimensions (L x W x D)	2278 x 1134 x 30mm
Weight	28kg ±3%
Maximum Series Fuse Rating	30A
Junction Box	IP68 Rated
Cell Temperature	25°C
Ambient Temperature	20°C
Cables	TUV 1 x 4.0mm²
Cable Length	(+): 400mm, (-): 200mm

---

Advanced Features

1. N-Type HOT 2.0 Technology:
   Improves efficiency, reduces power degradation, and extends the panel’s lifespan.
2. SMBB Technology:
   Optimizes light trapping, reduces current losses, and increases module power output.
3. Anti-PID Resistance:
   Protects the panel against potential-induced degradation for superior long-term performance.
4. Dual-Glass Design:
   Enhances durability and protection in extreme environmental conditions, increasing reliability.
5. IP68 Junction Box:
   Ensures waterproofing and dust resistance, guaranteeing long-term safety and reliability.

---

Applications

• Residential Installations:
  Perfect for high-efficiency rooftop systems with space optimization.
• Commercial Systems:
  Suitable for businesses aiming to reduce energy costs while maximizing clean energy output.
• Utility-Scale Projects:
  Ideal for large-scale solar farms requiring high-performance, durable panels.
• Industrial Applications:
  Supports energy-intensive operations with superior power generation and reliability.

---

Benefits at a Glance

• Delivers 580W of power with N-Type Mono-crystalline HOT 2.0 technology.
• High efficiency and PID resistance for long-term reliability.
• Enhanced energy yield with SMBB technology and anti-reflective glass.
• Built with a durable dual-glass design for resilience in harsh environments.
• Backed by IP68-rated junction box for superior waterproofing and safety.

---

Why Choose Jinko Solar Tiger Neo 580W?

The Jinko Solar Tiger Neo N-Type 580W Panel sets new standards in solar technology with advanced N-Type modules, HOT 2.0 technology, and SMBB enhancements. Offering exceptional power output, long-term reliability, and environmental durability, it is the perfect choice for achieving high energy efficiency and sustainable performance.

Invest in Jinko 580W Solar Panels and power your future with the next generation of solar technology!
